The complete technical lowdown on the new Williams FW35, which was officially unveiled this morning at Barcelona's Circuit de Catalunya by Pastor Maldonado and Valtteri Bottas

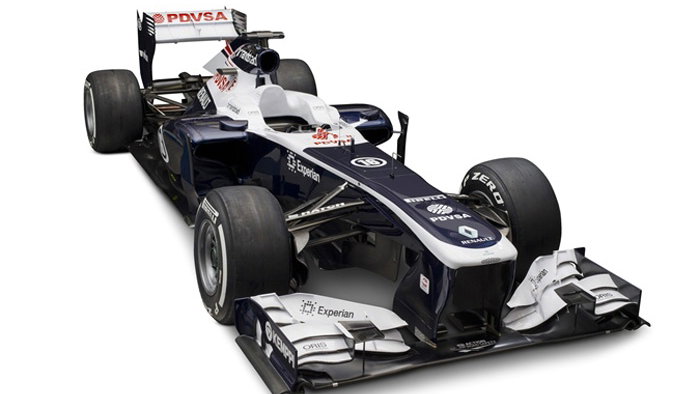

Williams-Renault FW35

Chassis construction: Monocoque construction laminated from carbon epoxy and honeycomb surpassing FIA impact and strength requirements

Related Articles

Front suspension: Double wishbone, push-rod activated springs and anti-roll bar

Rear suspension: Double wishbone, pull-rod activated springs and anti-roll bar

Transmission: Williams F1 seven speed seamless sequential semi-automatic shift plus reverse gear, gear selection electro-hydraulically actuated

Clutch: Carbon multi-plate

Dampers: Williams F1

Wheels: RAYS forged magnesium

Tyres: Pirelli, Fronts: 245/660-13, Rears: 325/660-13

Brake system: AP 6 piston calipers all round, carbon discs and pads

Steering: Williams F1 power assisted rack and pinion

Fuel system: ATL Kevlar-reinforced rubber bladder

Electronic systems: FIA SECU standard electronic control unit

Cooling system: Aluminium Oil, Water, KERS, and gearbox radiators

Cockpit: Six point driver safety harness with 75mm shoulder straps & HANS system, removable anatomically formed carbon fibre seat

Engine: Renault RS27-2013 2.4L V8, 900 V angle, 32 valves, aluminium block and pistons, nitrided alloy steel crankshaft with tungsten alloy counterweights, titanium connecting rods, 8 butterfly throttle system, 18000 rpm maximum speed

KERS: Williams F1 battery, MGU and electronics

Weight: FIA Minimum

Dimensions:
Overall length: 5000mm
Overall height: 950mm
Overall width: 1800mm
